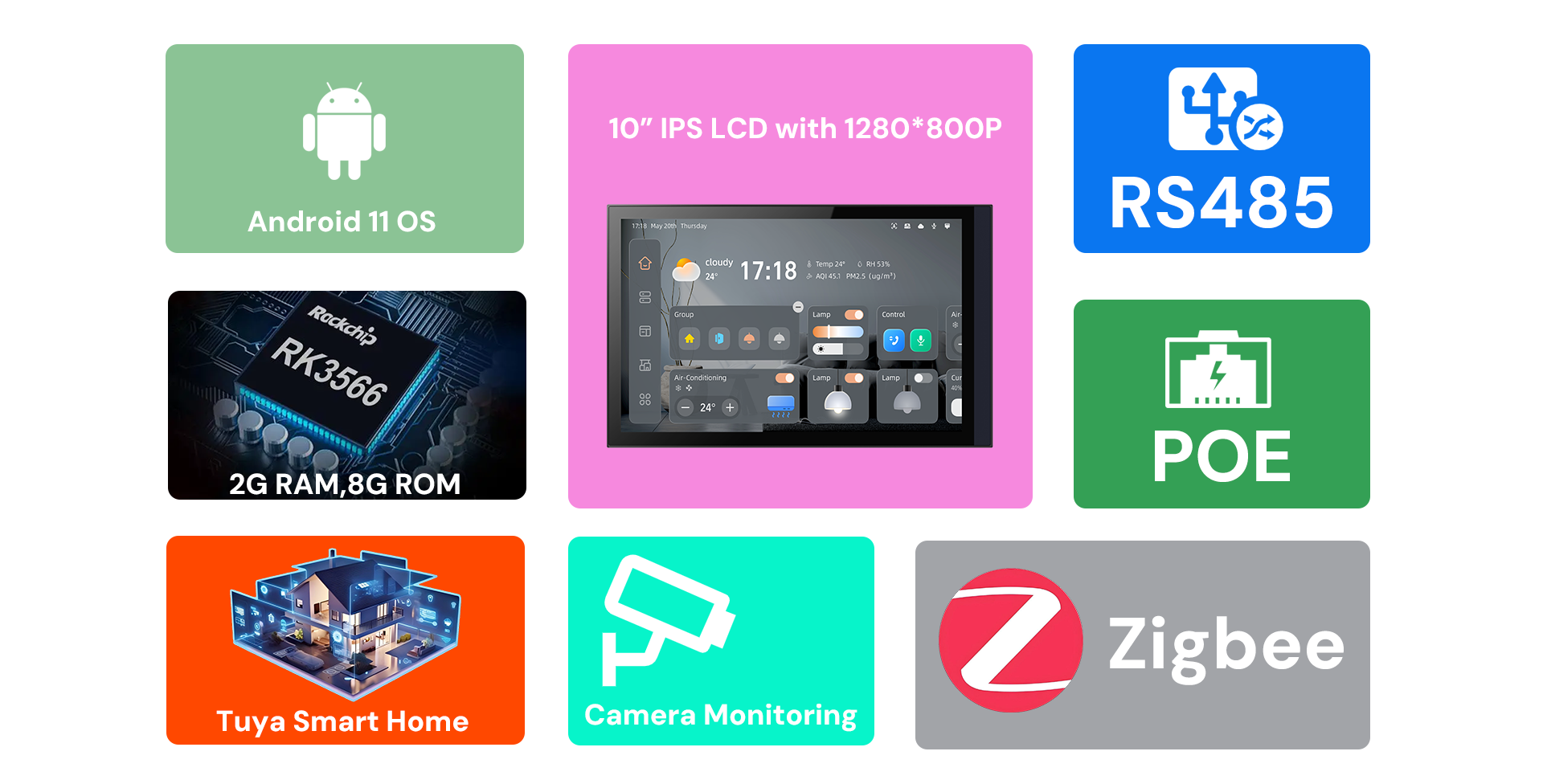

FEATURES
●10" IPS Touch Screen
●Android 10.0
● Kugadziriswa: 1280 x 800
●WiFi / Bluetooth 5.0(Inosarudzika)
● Vhidhiyo Doorphone Indoor Monitor
● Support PoE, IEEE802.3af/at
● Tsigira 3rd Party IP kamera
● Gomo reMasvingo
● Yakavakwa MuTuya Zigbee Gateway Module
ZVAKAITIKA ZVINHU
Model | TC-U9AIZK-20I |
System |
IWE | Android 10 |
CPU | Quad-core Cortex™-A53 |
Dominant Frequency | 1.5GHZ |
ROM | 8G |
RAM | 2G |
Display |
Display | 10" TFT MIPI |
Resolution | 1280 X 800 |
Operation Method | Capacitive Touch Screen |
Vadivelu Comedy Audio |
Input | Yakavakwa-mukati Maikorofoni |
Output | Yakavakwa-mukati Loudspeaker |
Codec | G.711 U |
Compression Rate | 64 kbps |
Network |
Ethernet | RJ45, 10/ 100 Mbps Adaptive |
WiFi | IEEE802 . 11b/g/n |
Protocol | TCP/IP/Bluetooth 5.0(Inosarudzika) |
PoE | IEEE802.3af/at |
Alarm Input | 8Ch |
Relay Output | / |
RS485 | Support |
TF Kadhi | Max. 32G |
General |
Magetsi | DC 12V 1.5A , Chibatanidza / POE |
Operating Temperature | -25 ℃~ +55 ℃ |
Kushanda Humidity | 10~90% |
Application Environment | Indoor |
Installation | Gomo reMasvingo |
Dimensions (WxHxD) | 246.6 x 155.4 x 12.4 (mm) |
Material | Girazi panhivi+ABS muviri+ABS pasi goko |
Color | Nhema |

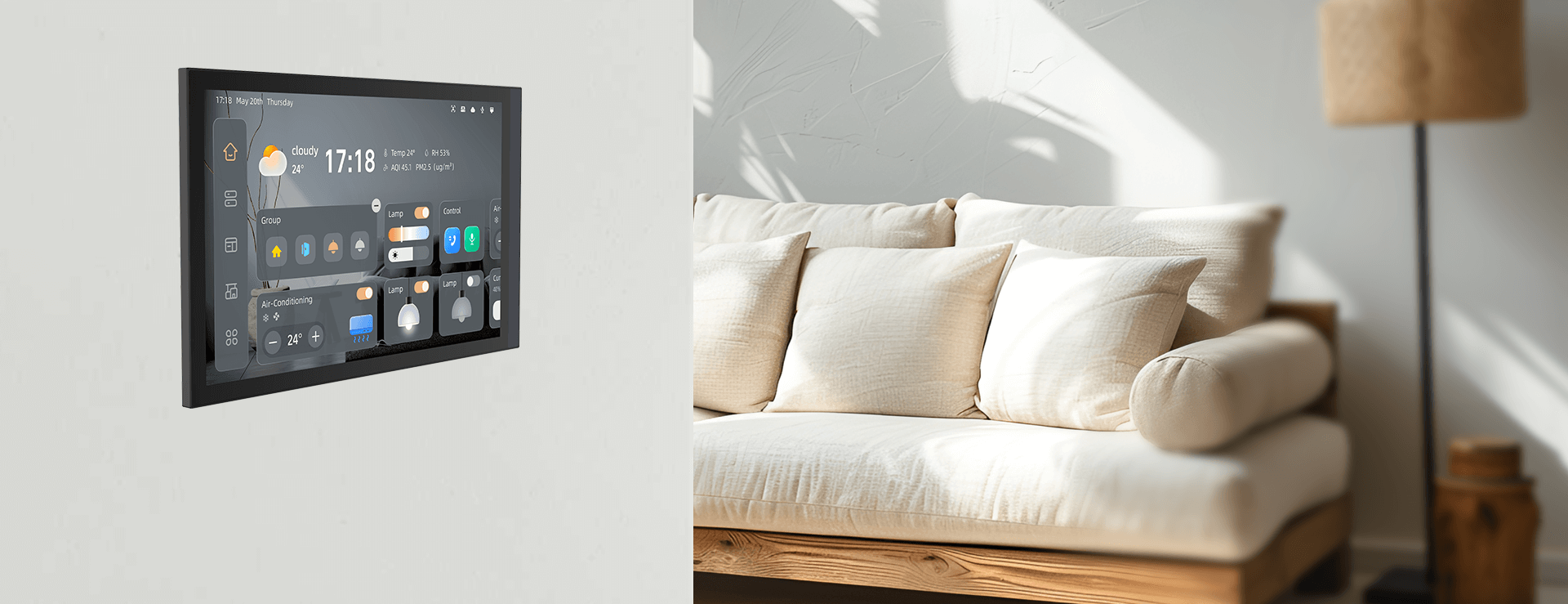

10" smart control Panel
Z10S Main Features

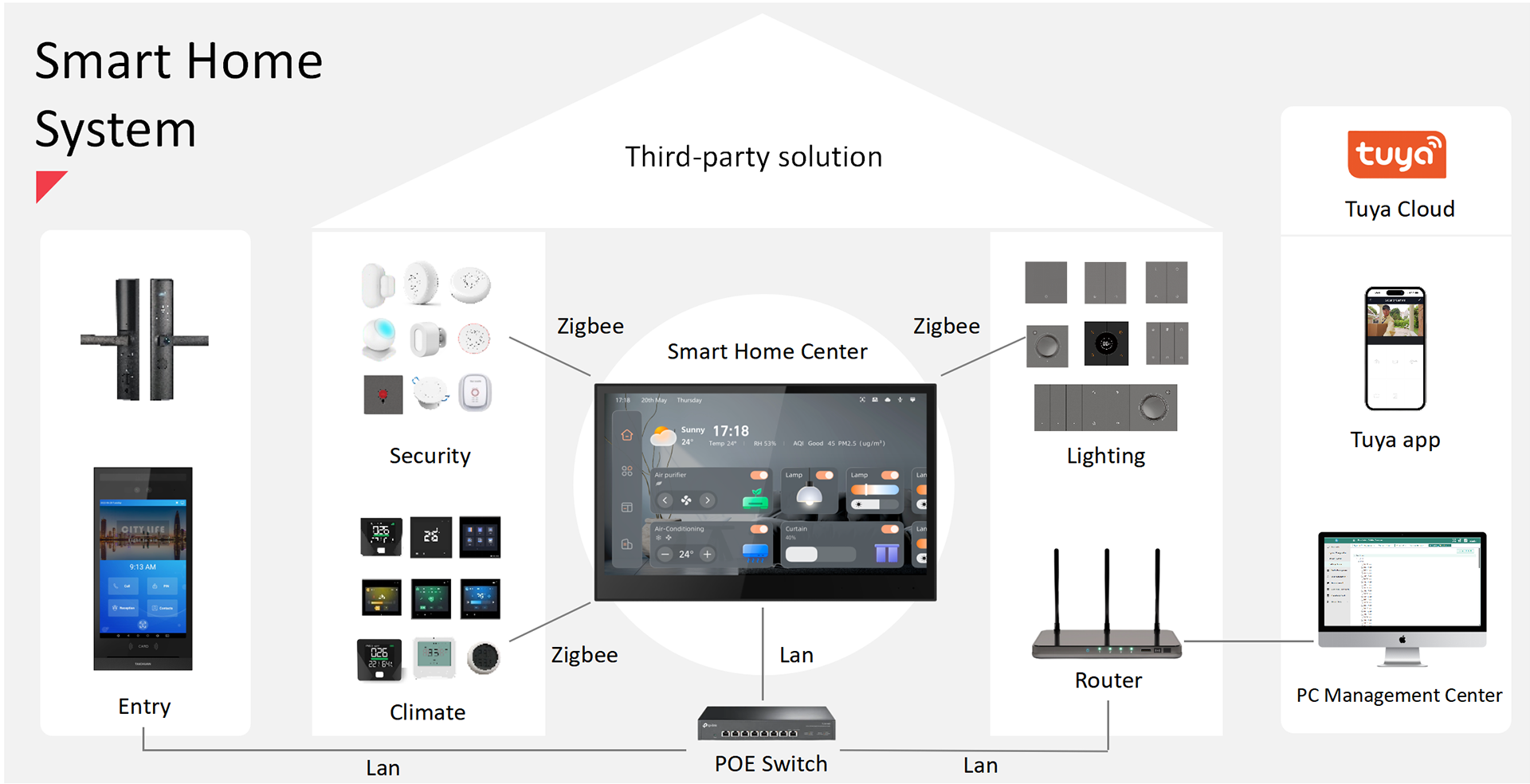

Smart Home Control Center
Smart Vhidhiyo Intercom
Ziva mararamiro anosanganisa kuchengetedzeka nehunyanzvi kuburikidza neTaichuan's renji yevhidhiyo intercom mhinduro.
Kumhuri dzemazuva ano, kuchengeteka uye kureruka ndizvo zvakakosha. Iyo TAICHUAN mhando yevhidhiyo intercoms, ine simba nekucheka-kumucheto tekinoroji uye hunyanzvi hwekuita, inopa kuchengetedzeka kwakasimba uye yakangwara yekurarama ruzivo.
Yakashongedzerwa nekamera yeHD yekufungidzira kwakapinza kwevaenzi uye kuratidzwa kwakajeka kwekuonekwa nguva dzese, iyo system inova nechokwadi chekubatana kwekuona kwakajeka. Yayo kure kure yekudzora ficha, inowanikwa kuburikidza nenharembozha, inokutendera iwe kuti utarise uye uvhure imba yako uri kure, kurerutsa kupinda kwevaenzi uye kuramba kiyi yekurasika.
Iine tarisiro pane zvakadzama, dhizaini yeTAICHUAN inokwenenzverwa kuitira kusashanda kuisirwa uye kushandisa, inokodzera akasiyana ekushongedza kwemba. Iko kusanganisirwa kwe-isina ruzha-nzira mbiri-intercom inovimbisa kutaurirana kwakatsetseka nevashanyi.
Kusarudza TAICHUAN's vhidhiyo intercom kudyara mune yakachengeteka, isina kunetseka, uye nehungwaru mararamiro. Gamuchira iyo yepamusoro pekugara kwakangwara neTAICHUAN nhasi.
Pindura maDoors kubva chero kupi zvako
Vhura musuwo wako kubva chero kupi ne mobile app yekuvhura kure kure. Sangana nekureruka kwekupedzisira uye kuchengetedzeka sezvaunodzora kupinda kweimba yako nekupopa kwakapusa pane yako smartphone.
Yako Smart Life muchengeti wemba
Iyo TAICHUAN brand vhidhiyo intercom inoita seyakazvitsaurira dziviriro yekugara kwako uye yanguard mukutungamira yako smart yekurarama ruzivo!
Seamlessly Raira uye Farika muHupenyu Hwako Hwakangwara
Ichi chigadzirwa chinosiyaniswa nekugona kwacho kupa chaiyo-nguva yekutarisa kwevashanyi uye kubata smart epamba masisitimu nemazvo. Iine nharembozha, une simba rekutarisa mamiriro eimba yako kubva chero nzvimbo, chero nguva, uye nekupombi iri nyore, unogona kugadzirisa mwenje, kutonga thermostat, uye kuraira kuchengetedza mapuroteni. Iyo nguva yeimba yakangwara haina kumbobvira yave kuwanikwa nyore nyore!
