FEATURES
TECHNICAL SPECIFICATIONS
Model |
TC-3000DA-X |
System | |
OS |
Embedded Linux |
CPU |
ARM9 |
Camera | |
Image Sensor |
2.0 Megapixel HD Color CMOS |
Supplement Light |
White LEDs |
Viewing Angle |
Horizontal: 115° Vertical: 90° |
Display | |
Operation |
Physical Button |
Color |
Black |
Audio | |
Input |
Built-in Microphone |
Output |
Built-in Loudspeaker |
Codec |
G.711 U |
Compression Rate |
64 kbps |
Audio Quality |
Noise Suppression & Echo Cancellation |
Capacity | |
Link Indoor Station |
500 |
Network | |
Ethernet |
RJ45, 10/ 100 Mbps Adaptive |
Protocol |
TCP/ IP |
PoE |
IEEE802.3af/at |
Alarm Input |
Door inspection:+ / - & Tamper detection:+ / - |
Relay Output |
NO/COM/NC |
RS485 |
/ |
TF Card |
/ |
General | |
Power Supply |
DC 12V, Connector |
Operating Temperature |
-25。C ~ +70。C |
Operating Humidity |
10~90% |
Application Environment |
Outdoor |
IP Protection |
IP54 |
Installation |
Wall/Flush Mount |

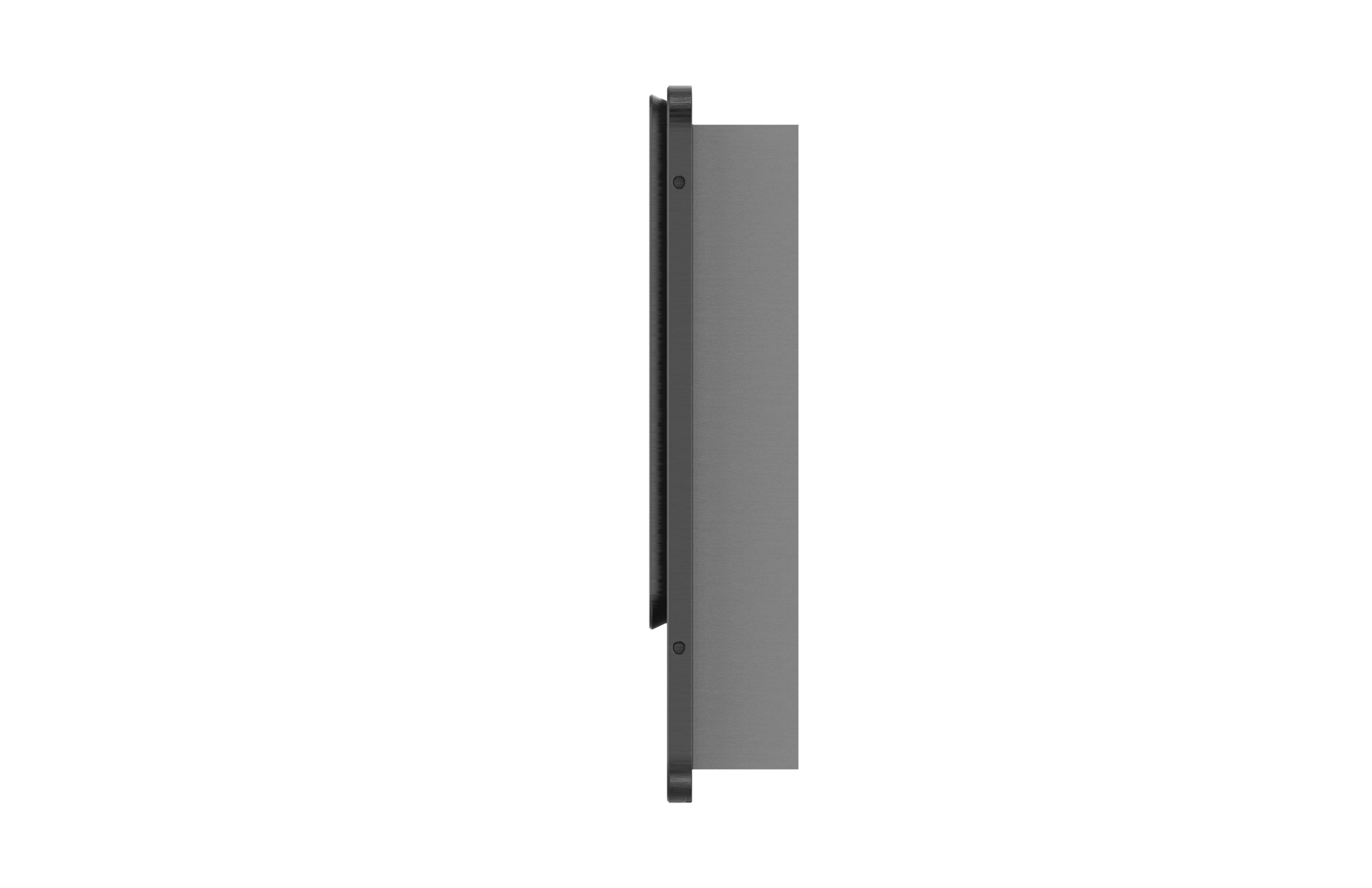

Dimension (WxHxD) |
92 x 155 x 33.5 (mm) |
Material |
Aluminum Alloy |
Door Lock |
Relay Unlock |

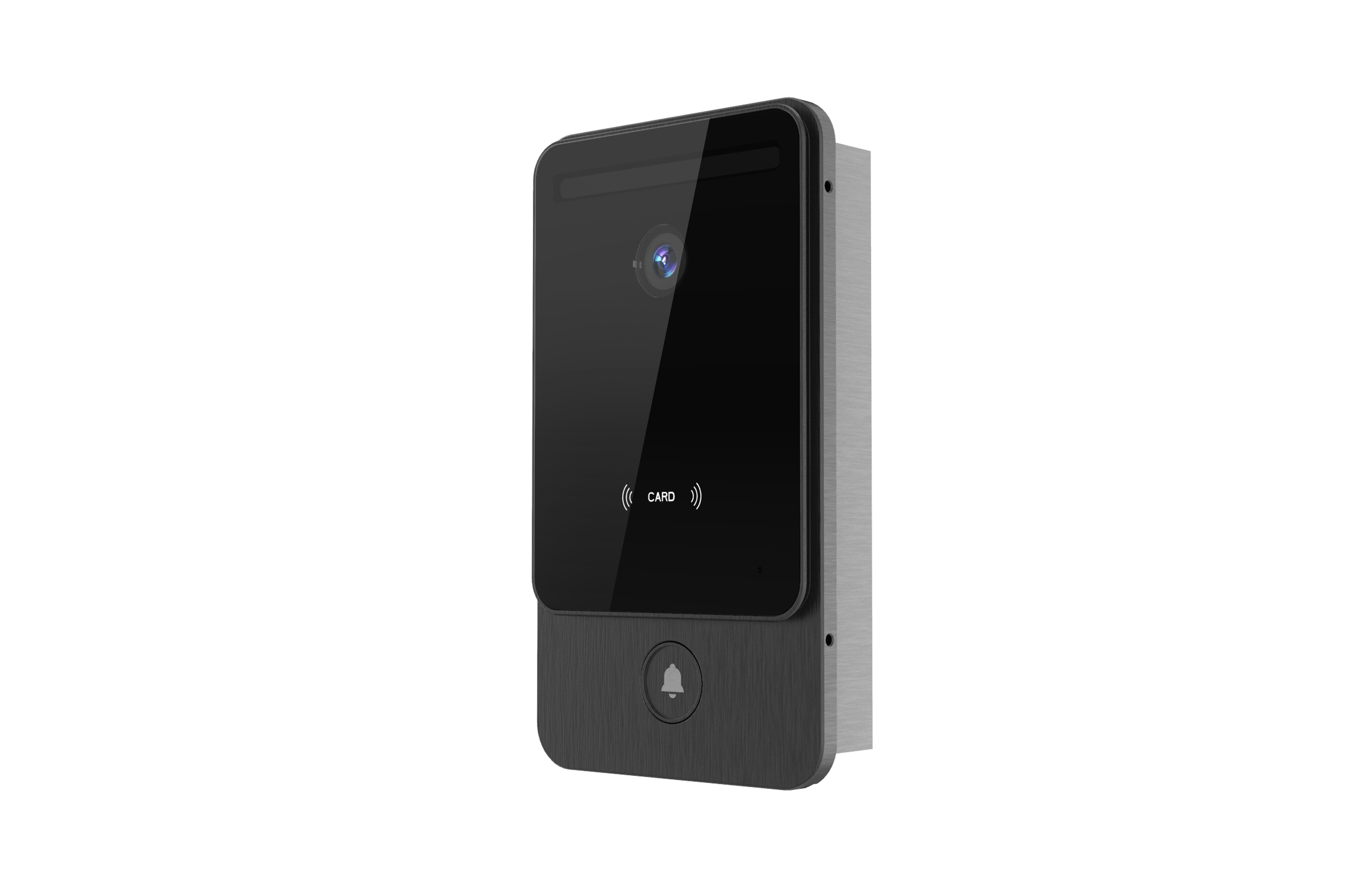

DA-X IP Villa Doorbell
The product integrates card swipe functionality with remote unlocking through a mobile app, providing complete home security. The card swipe feature allows for quick and hassle-free access. With the app's remote unlocking capability, you can manage the lock status anytime and anywhere, ensuring your home's safety.
Whether you need to welcome guests or grant access to family members, it's easily managed.
This entrance system is practical, efficient, and features a modern design that blends seamlessly into your living space, adding convenience and peace of mind to your everyday life.
Control your Doors Anywhere
With the mobile app remote unlocking feature, you can unlock your door from any location. Enjoy the utmost convenience and security by managing access to your home with just a tap on your smartphone.
Suitable for Outdoor Use
This device operates effectively across a wide temperature range from -25℃ to +55℃ and a humidity range from 10% to 90% RH.
System Diagram
