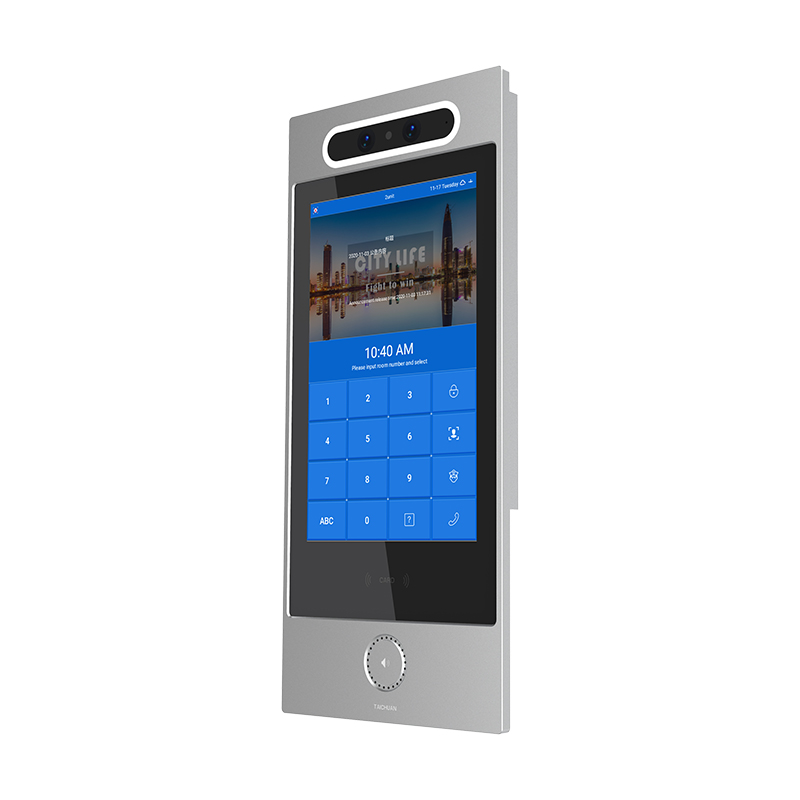

20B Facial Recognition Outdoor Panel

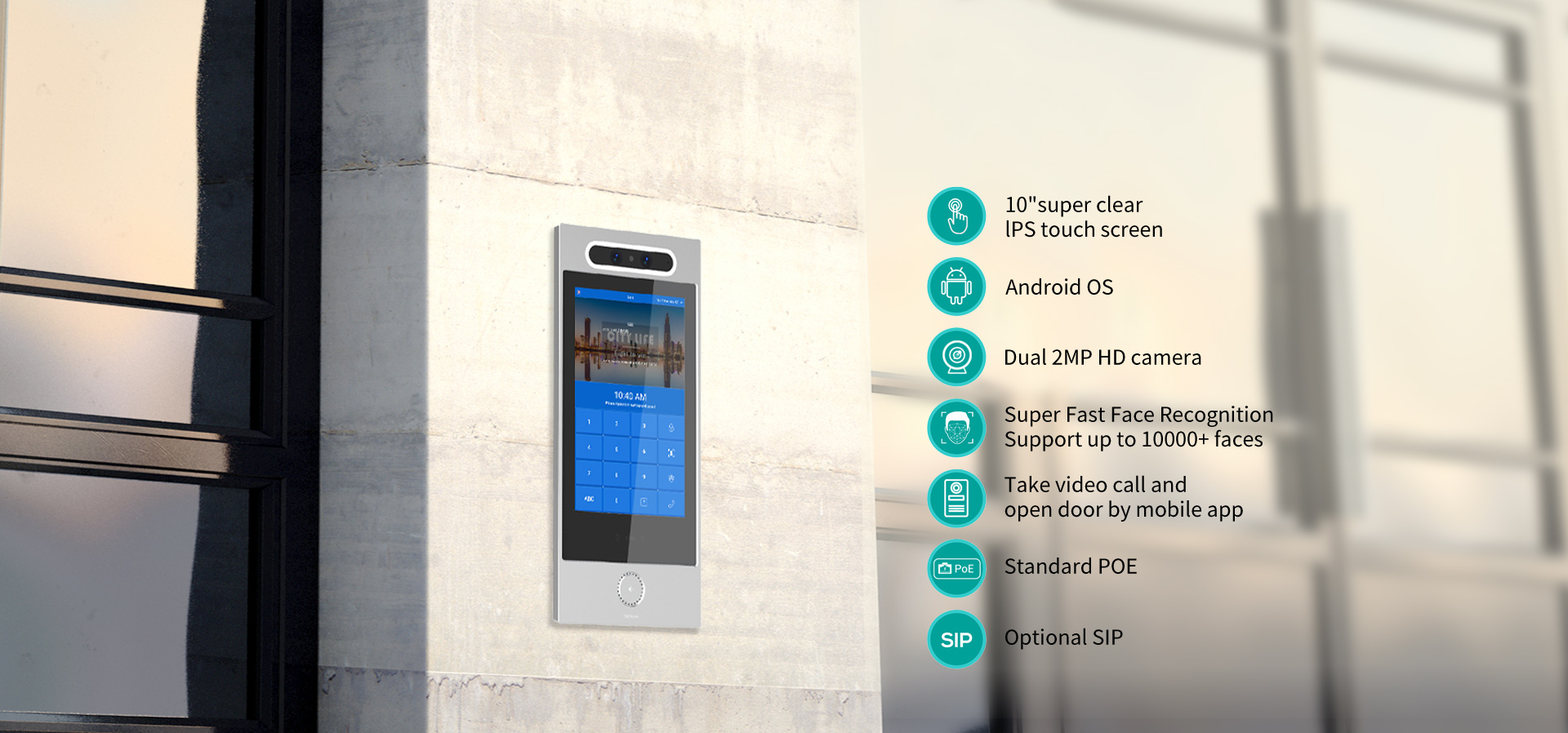

Taichuan 20B Facial Recognition Outdoor Station offers not just security but also acts as your home's intelligent guardian!
You have the flexibility to choose your preferred unlocking method, whether it be facial recognition, card swiping, password entry, or using a mobile app. With improved security and privacy features, it makes your home life more convenient and safe!
Select your preferred unlocking method
Facial recognition, card swiping, password entry, or mobile app. With multiple security features, it's convenient, fast, secure, and worry-free.

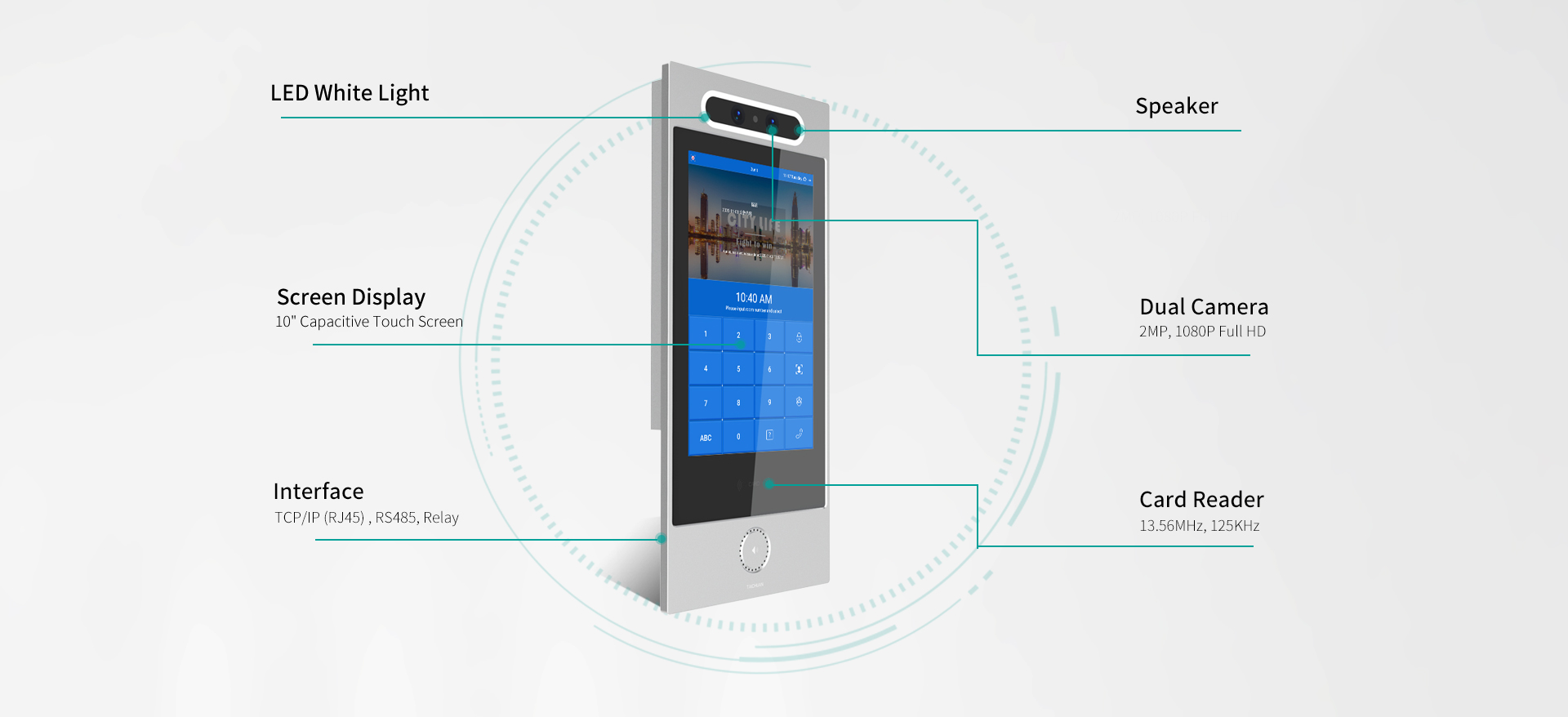

HD Dual Camera
The product delivers high-definition image quality, ensuring clear recognition day and night, providing peace of mind for your daily life.

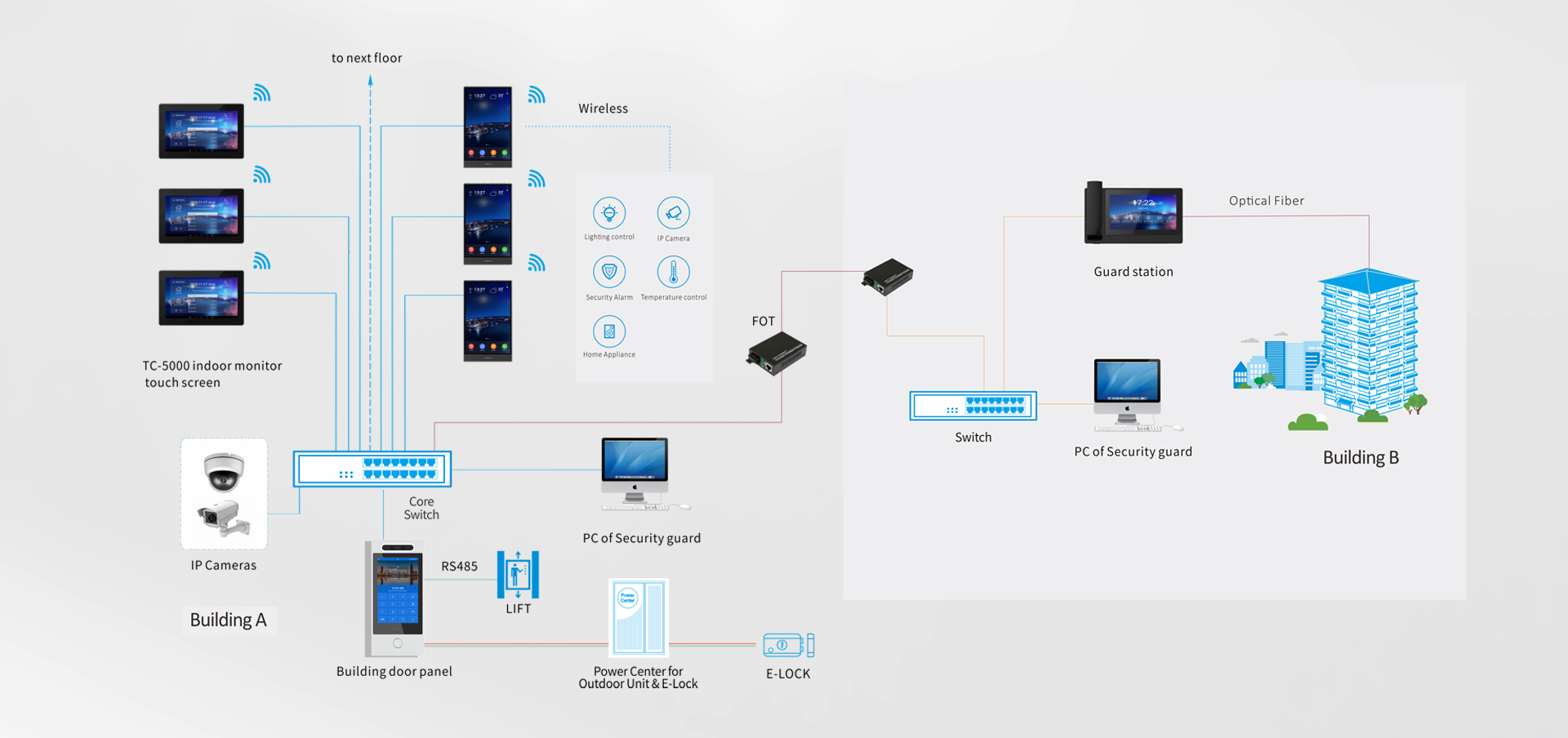

System Diagram
| Specifications | |
| Model | TC-5000D-20B |
| System | |
| OS | Android 7.1 |
| CPU | Dual-core Cortex-A72 + Quad-core Cortex-A53 |
| RAM/ROM | 2G / 8G |
| Master Frequency | 1.8GHZ |
| Camera | |
| Image Sensor | Dual camera (color HD camera plus infrared HD camera)/CMOS 2MP HD Colorful Camera |
| Supplement Light | White LEDs |
| Viewing Angle | Horizontal: 115° Vertical: 90° |
| Display | |
| Screen | 10 " TFT High definition IPS display screen, Fully fitted |
| Resolution Ratio | 1280*800 |
| Operation | Touch Screen |
| Color | Silver + Black |
| Audio | |
| Input | Built-in Microphone |
| Output | Built-in Loudspeaker |
| Codec | G.711 U |
| Compression Rate | 64 kbps |
| Audio Quality | Noise Suppression & Echo Cancellation |
| Network | |
| Ethernet | RJ45, 10/100 Mbps adaptive |
| Protocol | TCP/IP |
| PoE | IEEE802.3af/at |
| Alarm Input | Alarm IN : Alarm / DOOR IN : Unlock Detection |
| Relay Output | COM / NO |
| RS485 | GND / A / SV / B |
| TF Card | Micro SD Card |
| General | |
| Power Supply | DC 12V Connector / POE |
| Operating Temperature | -25。C ~ +70。C |
| Operating Humidity | 10~93% |
| Application Environment | Outdoor |
| IP Protection | IP54 |
| Installation | Wall |

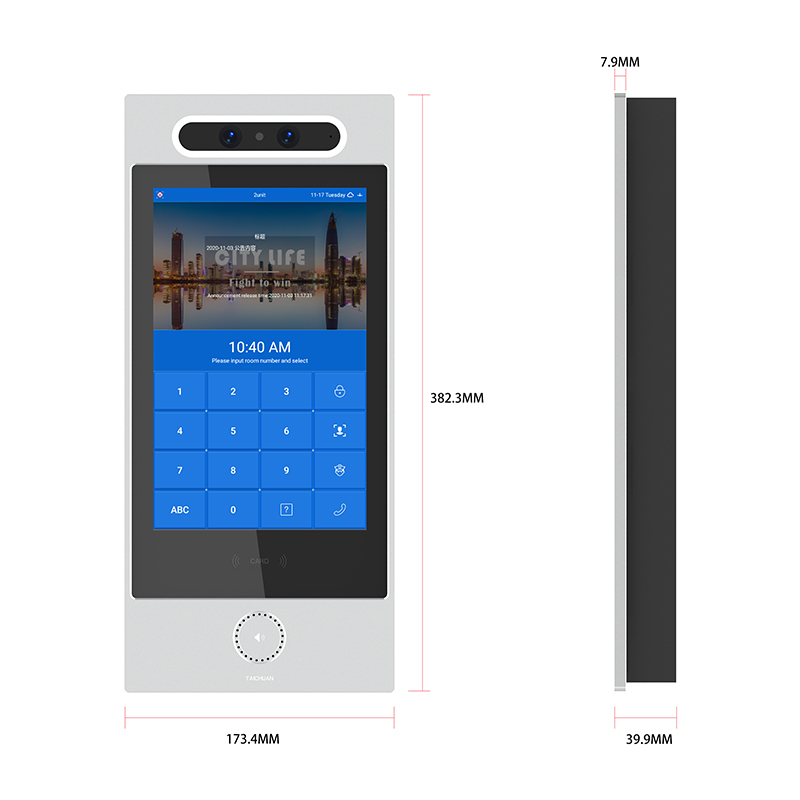

| Dimension (WxHxD) | 173.4 * 392.3 * 39.2(mm) |
| Embeddedsize (WxHxD) | 160 * 388 * 42mm |
| Material | Tempered glass panel + Aluminum alloy body + Sheet metal bottom shell |
| Door Lock | Relay Unlock(COM / +12V / NO / GND) |
