10" Smart Intercom

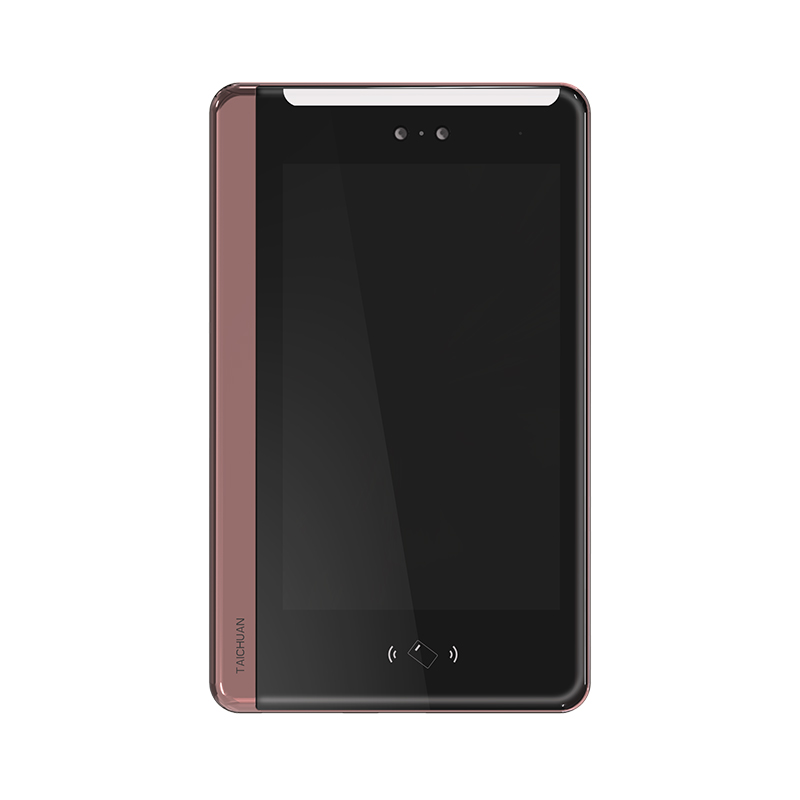

20F Facial Recognition Outdoor Panel
Taichuan 20F Facial Recognition Outdoor Station enhances safety and acts as the smart guardian of your home!
You can select from various unlocking methods, including facial recognition, card swiping, password entry, or a mobile app. Offering superior security and privacy protection, it makes your home life more convenient and secure!
Select your preferred unlocking method
This product supports facial recognition, card swiping, password entry, and mobile app access. With multiple security features, it is convenient, quick, and ensures peace of mind.

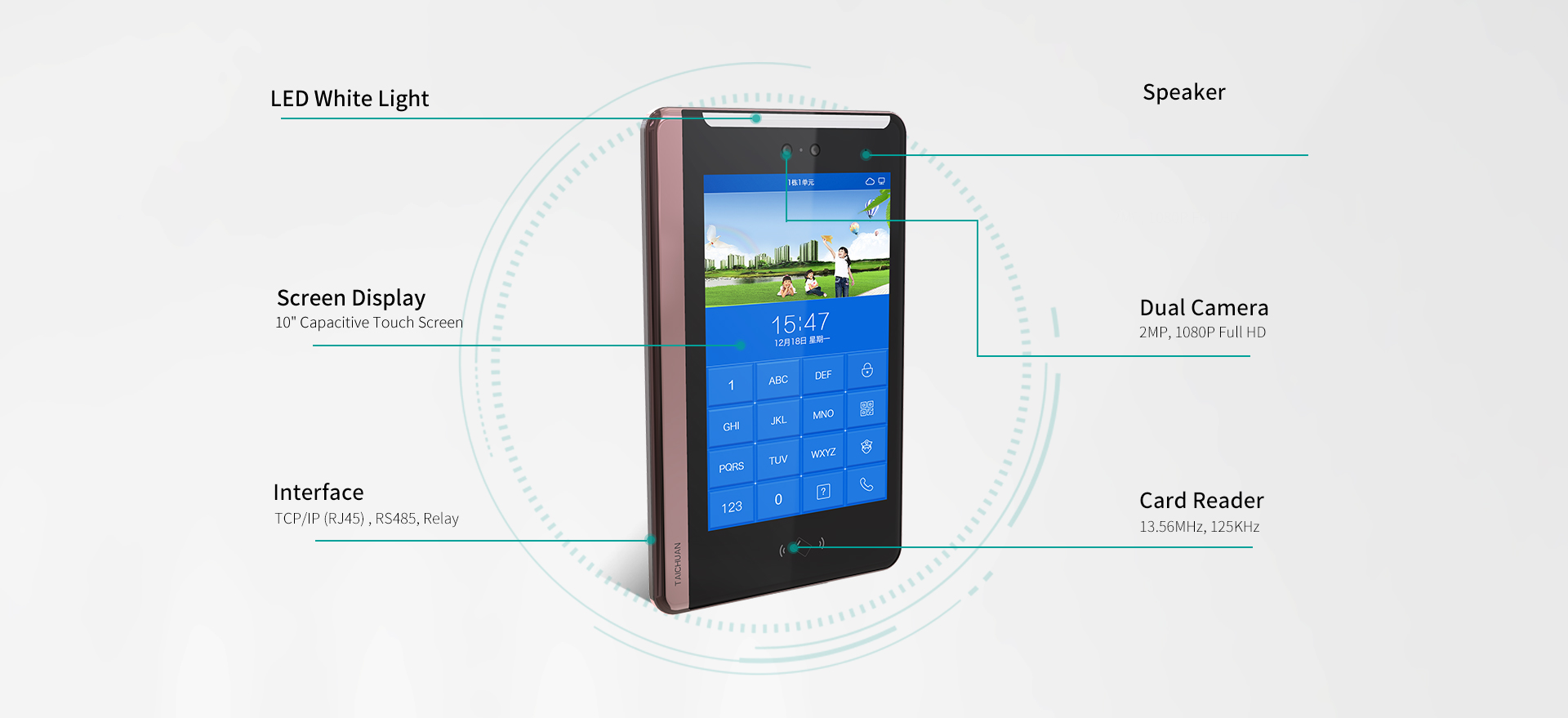

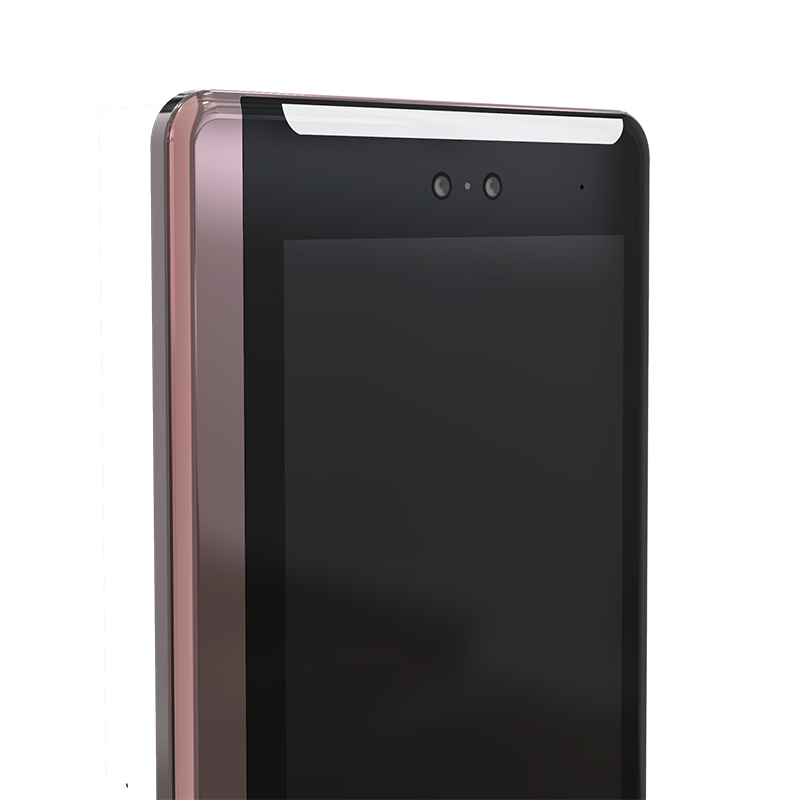

HD Dual Camera
The product offers ultra-clear image quality. Whether day or night, it ensures clear recognition, letting you enjoy a worry-free life.

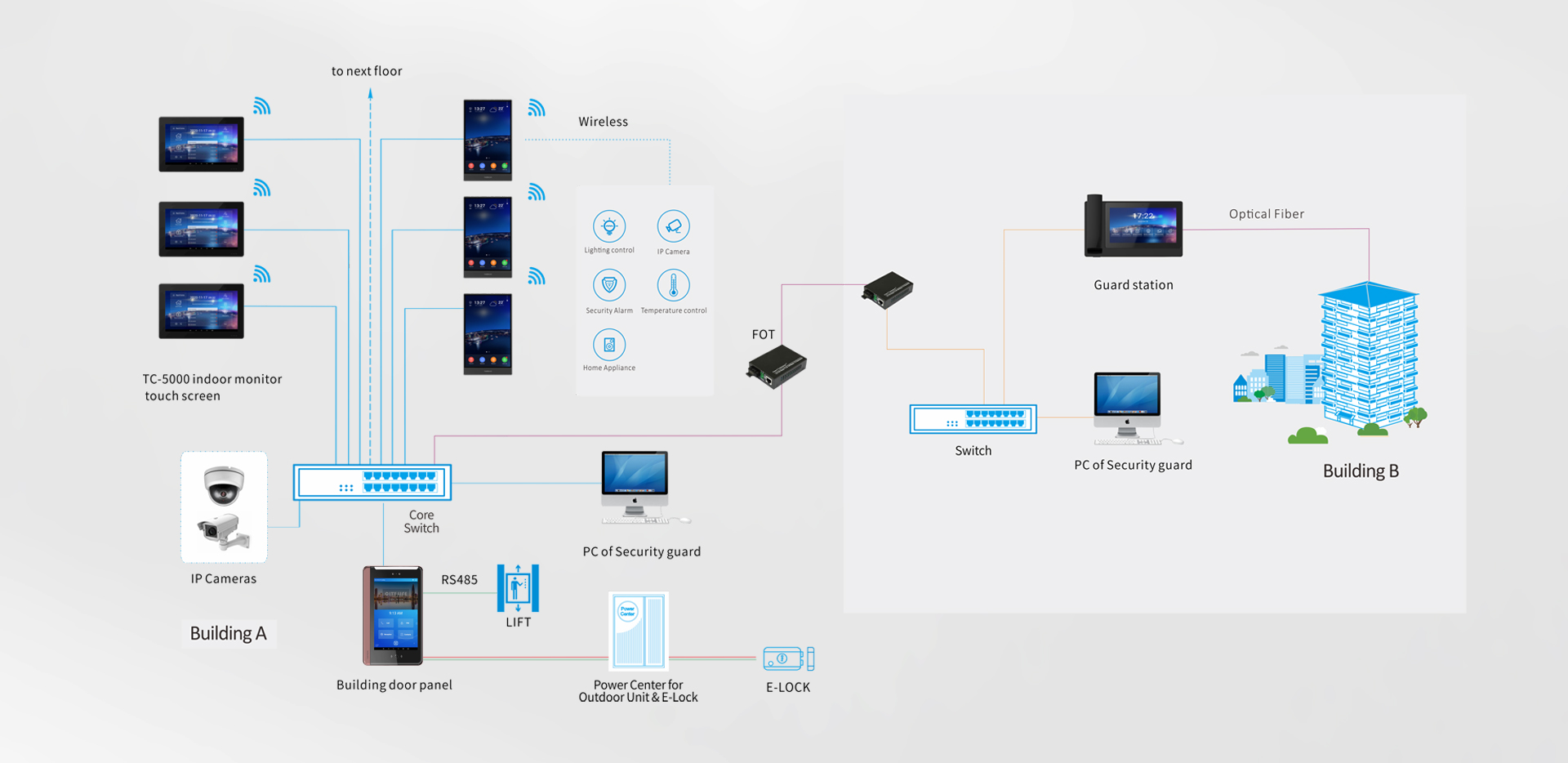

System Diagram
| Specifications | |
| Model | TC-5000D-20F |
| System | |
| OS | Android 7.1 |
| CPU | Dual-core Cortex-A72 + Quad-core Cortex-A53 |
| RAM/ROM | 2G / 8G |
| Master Frequency | 1.8GHZ |
| Camera | |
| Image Sensor | Dual camera (color HD camera plus infrared HD camera)/CMOS 2MP HD Colorful Camera |
| Supplement Light | White LEDs |
| Viewing Angle | Horizontal: 115° Vertical: 90° |
| Display | |
| Screen | 10 " TFT High definition IPS display screen, Fully fitted |
| Resolution Ratio | 1280*800 |
| Operation | Touch Screen |
| Color | Rose Gold + Black |
| Audio | |
| Input | Built-in Microphone |
| Output | Built-in Loudspeaker |
| Codec | G.711 U |
| Compression Rate | 64 kbps |
| Audio Quality | Noise Suppression & Echo Cancellation |
| Network | |
| Ethernet | RJ45, 10/100 Mbps adaptive |
| Protocol | TCP/IP |
| PoE | IEEE802.3af/at |
| Alarm Input | Alarm IN : Alarm / DOOR IN : Unlock Detection |
| Relay Output | COM / NO |
| RS485 | GND / A / SV / B |
| TF Card | Micro SD Card |
| General | |
| Power Supply | DC 12V Connector / POE |
| Operating Temperature | -25。C ~ +70。C |
| Operating Humidity | 10~93% |
| Application Environment | Outdoor |
| IP Protection | IP54 |
| Installation | Wall |

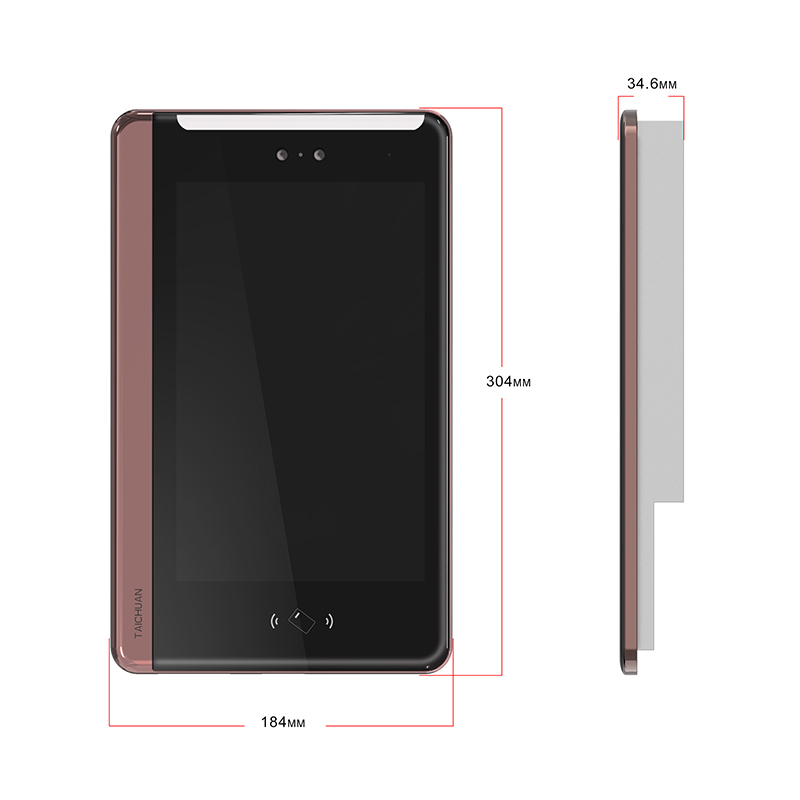

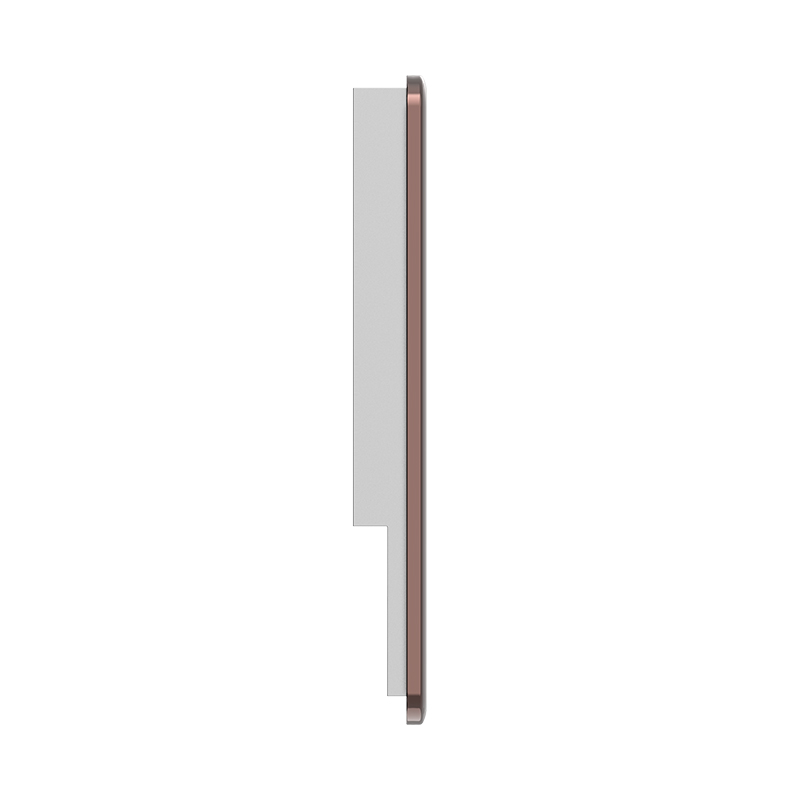

| Dimension (WxHxD) | 184 * 304 * 35.1(mm) |
| Embeddedsize (WxHxD) | 162 * 297 * 42mm |
| Material | Tempered glass panel + Aluminum alloy body + Sheet metal bottom shell |
| Door Lock | Relay Unlock(COM / +12V / NO / GND) |
