FEATURES
TECHNICAL SPECIFICATIONS
Model |
TC-5000D-Q10A |
System | |
OS |
Android 7.1 |
CPU |
Dual-core Cortex-A72 + Quad-core Cortex-A53 |
RAM/ROM |
2G / 8G |
Master Frequency |
1.8GHZ |
Camera | |
Image Sensor |
Dual camera (color HD camera plus infrared HD camera)/CMOS 2MP HD Colorful Camera |
Supplement Light |
White LEDs |
Viewing Angle |
Horizontal: 115° Vertical: 90° |
Display | |
Screen |
10 " TFT High definition IPS display screen, Fully fitted |
Resolution Ratio |
1280 * 800 |
Operation |
Touch Screen |
Color |
Black |
Audio | |
Input |
Built-in Microphone |
Output |
Built-in Loudspeaker |
Codec |
G.711 U |
Compression Rate |
64 kbps |
Audio Quality |
Noise Suppression & Echo Cancellation |
Network | |
Ethernet |
RJ45, 10/ 100 Mbps Adaptive |
Protocol |
TCP/ IP |
PoE |
IEEE802.3af/at |
Alarm Input |
Alarm IN : Alarm / DOOR IN : Unlock Detection |
Relay Output |
COM / NO |
RS485 |
GND / A / 5V / B |
TF Card |
Micro SD Card |
General | |
Power Supply |
DC 12V, Connector / POE |
Operating Temperature |
-25。C ~ +70。C |
Operating Humidity |
10~93% |
Application Environment |
Outdoor |
IP Protection |
IP54 |
Installation |
Wall |
Dimension (WxHxD) |
165 * 340 * 333.8mm |
Embedded size |
158 * 333* 43mm |
Material |
Tempered glass panel+Aluminum alloy body+Sheet metal bottom shell |
Door Lock |
RelayUnlock(COM / +12V / NO / GND) |

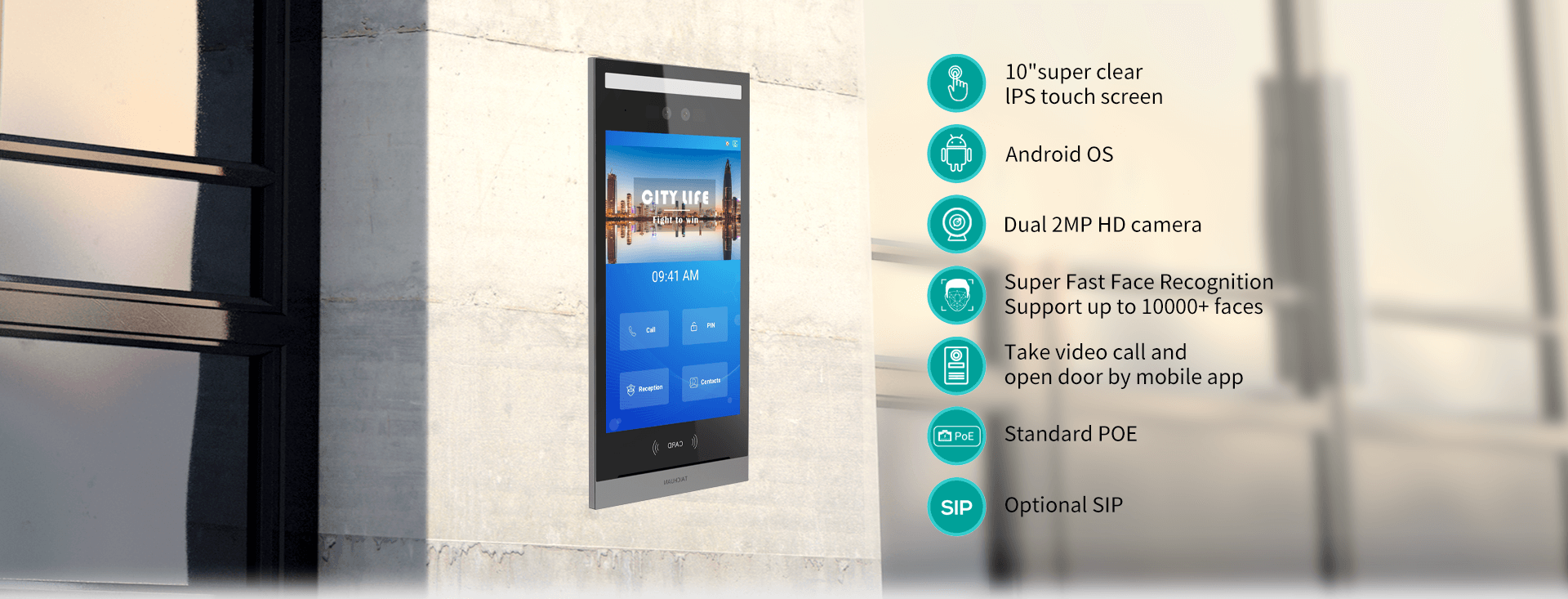

10" Smart Video Doorphone

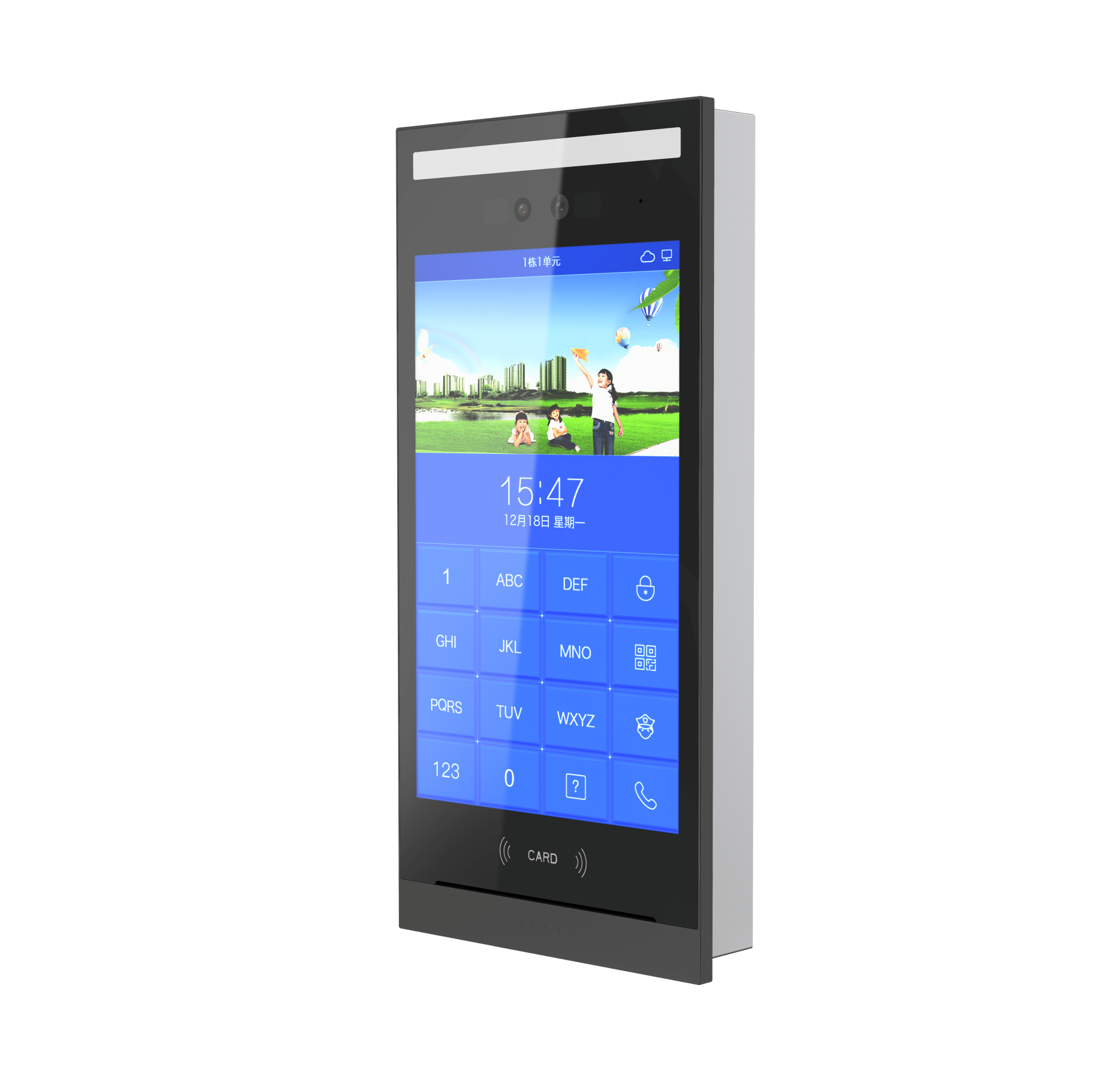

Facial Recognition Outdoor Panel
Taichuan Facial Recognition Outdoor Station provides robust security and acts as the smart guardian of your home!
You have the flexibility to choose your preferred unlocking method, whether it's face entrance, card swiping, password entry, or through a mobile app. With improved security and privacy features, it makes your home life more convenient and safe!
Choosing your preferred unlocking methods
This product supports facial recognition, card swiping, password entry, and mobile app access. It offers multiple layers of protection, ensuring convenience, speed, and security for a worry-free experience.
HD Dual Camera
The product provides pretty clear image quality that ensures high recognition day and night, offering peace of mind for worry-free living.
System Diagram
