8" Smart Intercom

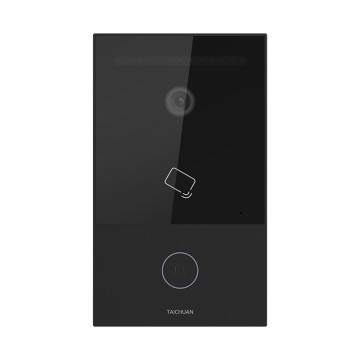

XL5 Facial Recognition Outdoor Panel
Taichuan XL5 Facial Recognition Outdoor Station offers robust security while acting as the smart protector of your home! You can select from various unlocking methods, including facial recognition, card swiping, password input, or a mobile app. Enjoy increased safety and privacy, making your home life both convenient and secure!
Choosing your preferred unlocking methods
This product offers facial recognition, card swipe, password input, and mobile app options. With multiple security measures in place, it ensures convenient, swift, secure, and worry-free access.
HD Dual Camera
The product provides high-definition image quality, ensuring clear recognition day and night, allowing you to enjoy peace of mind in your daily life.
System Diagram
| Specifications | |
| Model | TC-5000D-XL5 |
| System | |
| OS | Android 7.1 |
| CPU | Dual-core Cortex-A72 + Quad-core Cortex-A53 |
| RAM/ROM | 2G / 8G |
| Master Frequency | 1.8GHZ |
| Camera | |
| Image Sensor | Dual camera (color HD camera plus infrared HD camera)/CMOS 2MP HD Colorful Camera |
| Supplement Light | White LEDs |
| Viewing Angle | Horizontal: 115° Vertical: 90° |
| Display | |
| Screen | 8 " TFT High definition IPS display screen, Fully fitted |
| Resolution Ratio | 1280*800 |
| Operation | Touch Screen |
| Color | Silver+Black |
| Audio | |
| Input | Built-in Microphone |
| Output | Built-in Loudspeaker |
| Codec | G.711 U |
| Compression Rate | 64 kbps |
| Audio Quality | Noise Suppression & Echo Cancellation |
| Network | |
| Ethernet | RJ45, 10/100 Mbps adaptive |
| Protocol | TCP/IP |
| PoE | IEEE802.3af/at |
| Alarm Input | Alarm IN : Alarm / DOOR IN : Unlock Detection |
| Relay Output | COM / GND / +12V |
| RS485 | GND / A / B |
| TF Card | Micro SD Card |
| General | |
| Power Supply | DC 12V Connector / POE |
| Operating Temperature | -25。C ~ +70。C |
| Operating Humidity | 10~93% |
| Application Environment | Outdoor |
| IP Protection | IP54 |
| Installation | Wall |
| Dimension (WxHxD) | 140.5*284.6*32(mm) |
| Embeddedsize (WxHxD) | 129*282*50mm |
| Material | Tempered glass panel + Aluminum alloy body + Sheet metal bottom shell |
| Door Lock | Relay Unlock |
