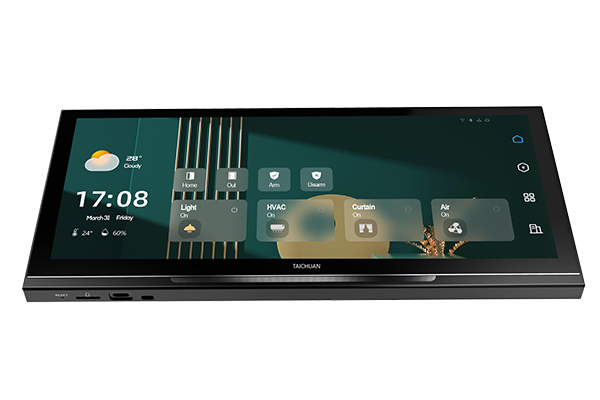

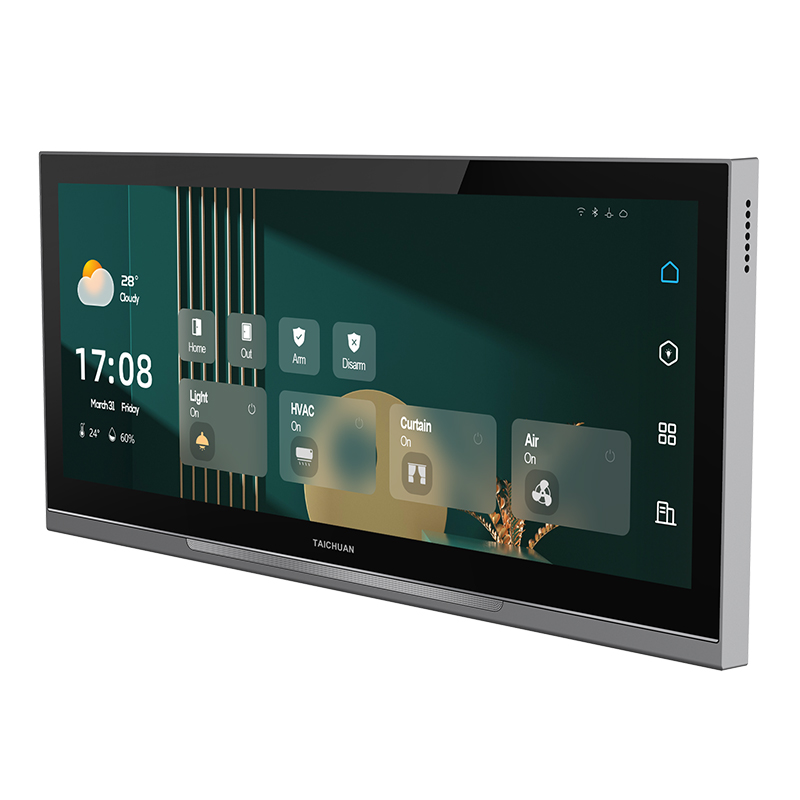

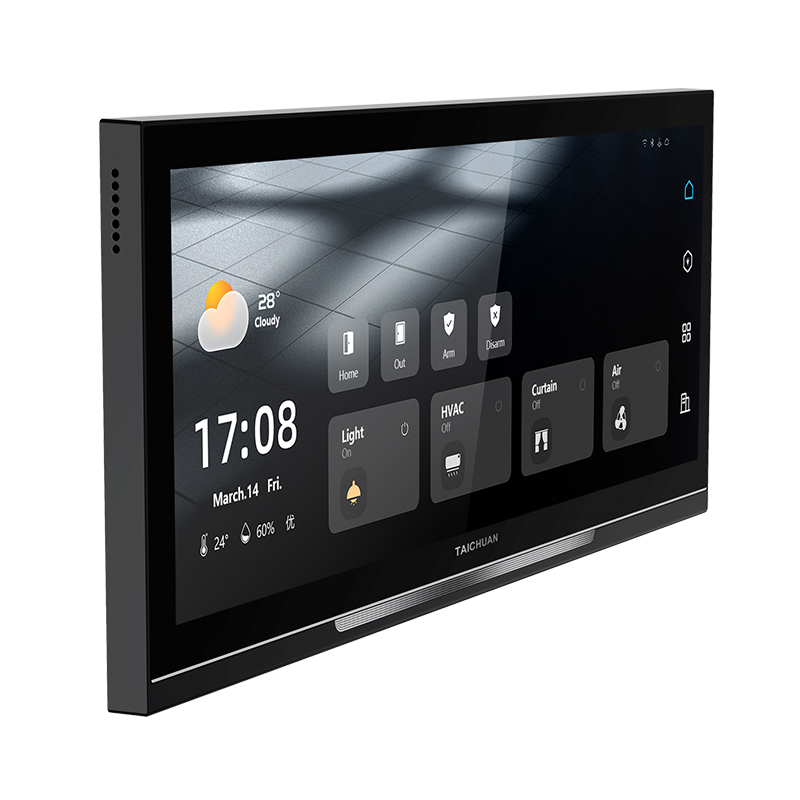

All-in-one Smart Control Panel

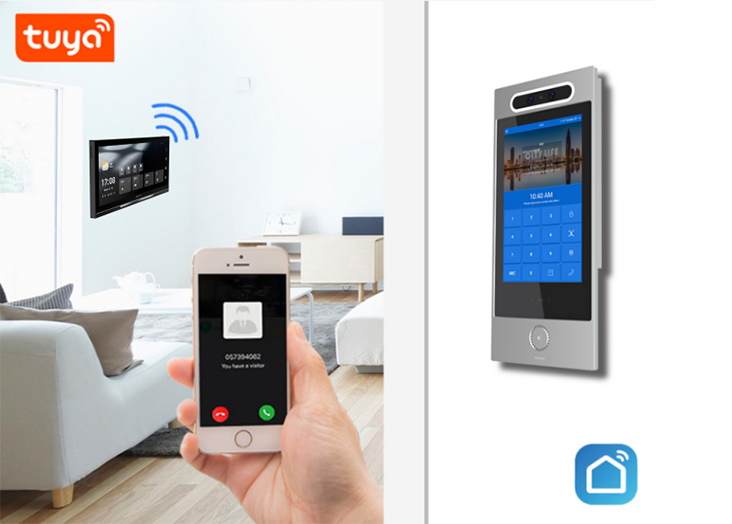

Smart Video Intercom

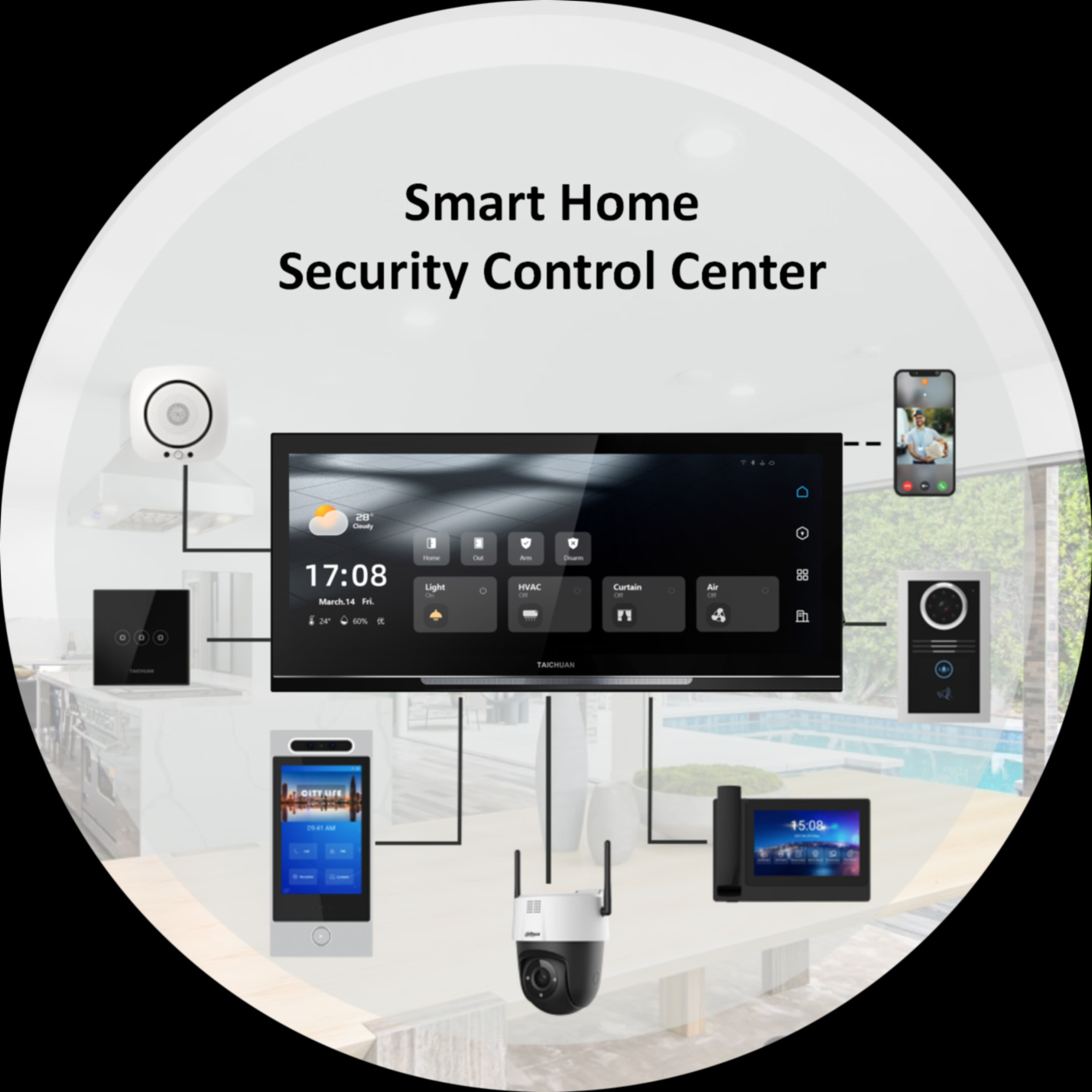

Taichuan All-in-one Smart Control Panel offers communication with integrated security. It can be connected to smartphones and third-party CCTV cameras. The visitor's call will appear on your indoor monitor or smartphone, helping residents identify visitors before allowing them into the community.
Surveillance System
Taichuan All-in-one Smart Control Panel can function as a smart intercom system with a door phone, connecting to third-party CCTV cameras to display live video streams from the door phone and surveillance cameras for enhanced family security.
Smart Home Solution
Taichuan All-in-one Smart Control Panel comes with multiple interfaces and supports third-party apps, offering more options and possibilities for smart home solutions.

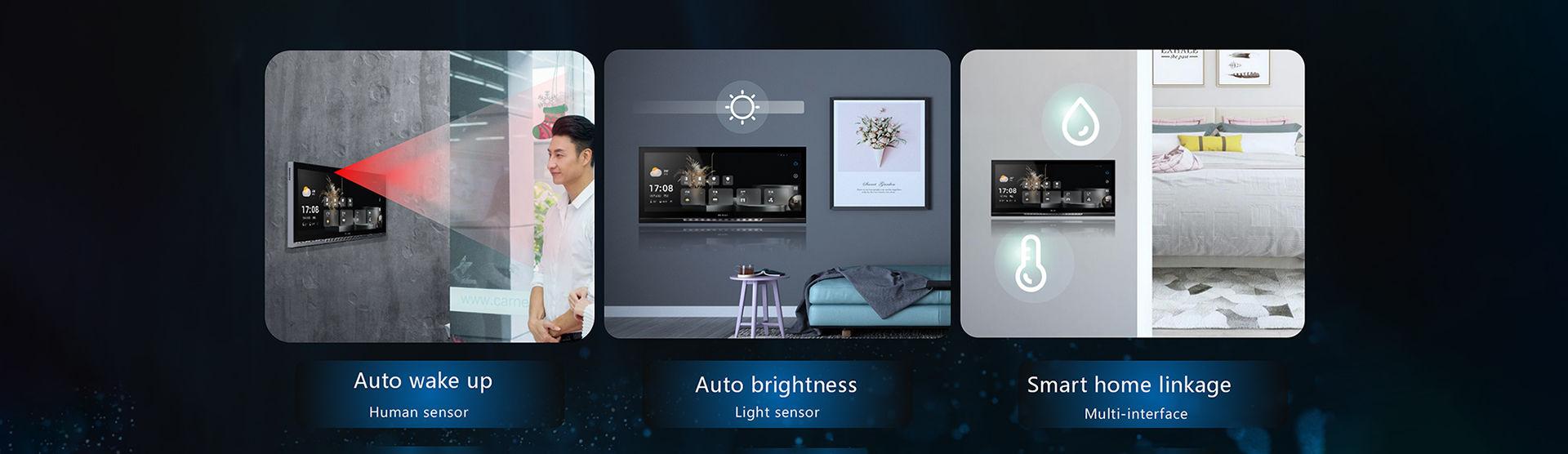

Multi-sensor Interaction
| Specification | |
| System | Android 10 |
| RAM | 2GB |
| ROM | 8GB |

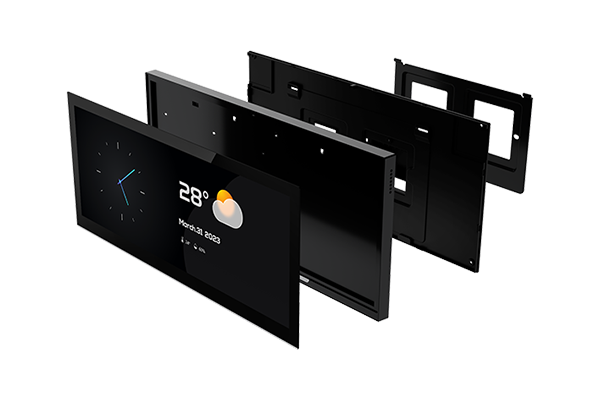

| Housing | Aluminium frame+ABS |
| Power Supply | PoE (802.3af) or DC12V/1.5A |
| Wi-Fi | IEEE802.11 b/g/n,@2.4GHz (Optional) |
| Zigbee | Tuya Zigbee 3.0 |
| Bluetooth | Yes |

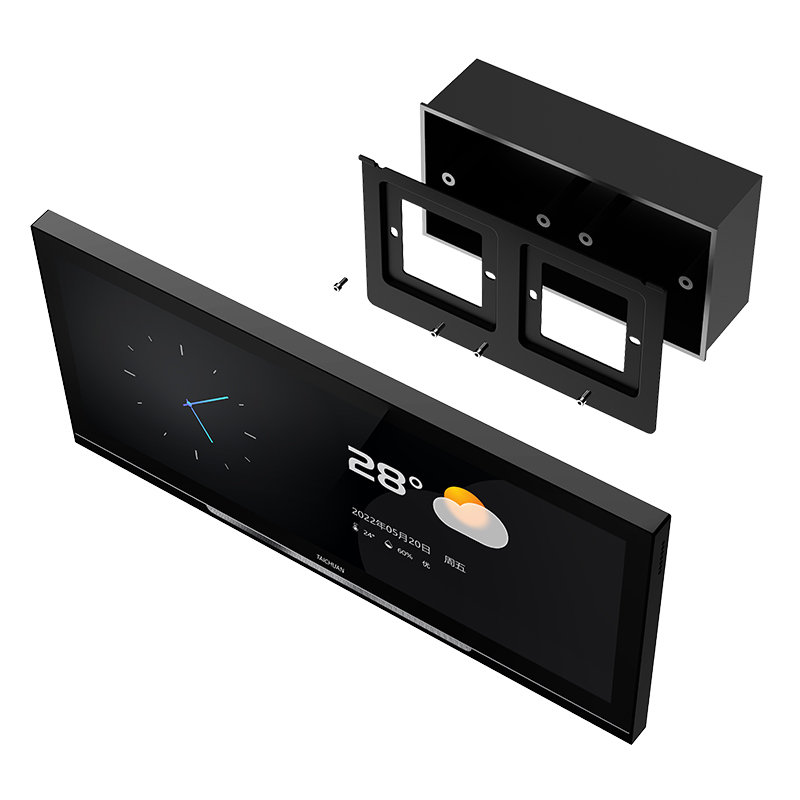

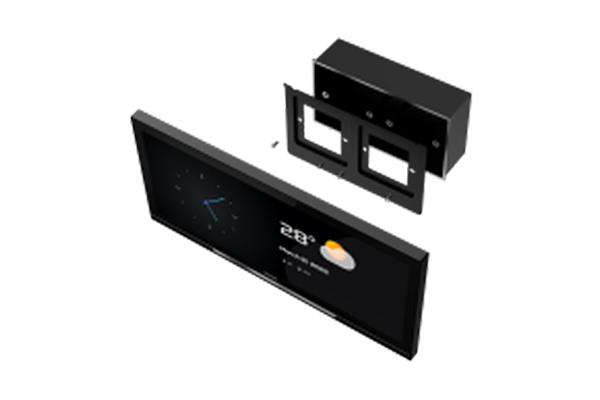

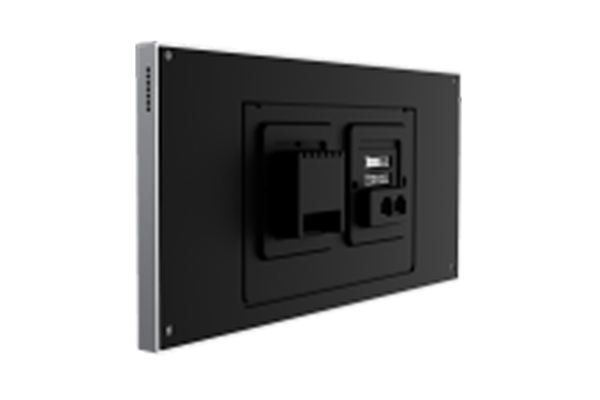

| Installation | Double 86 boxes with magnetic suction wall hanging |
| Dimension | 315.5 x 143.5 x 12mm |
| Working Temperature | -10℃ - +55℃ |
| Working Humidity | 5%-95% (non-condensing) |
| Display | |
| Display | 12.3 inch IPS LCD |
| Screen | Capacitive touch screen |
| Resolution | 1920 x 720 |
| Audio & Video | |
| Audio Input | 4-array Mics |
| Audio Output | 2*2W stereo speaker |
| Audio Codec | G.711 |
| Video Codec | H.264 |

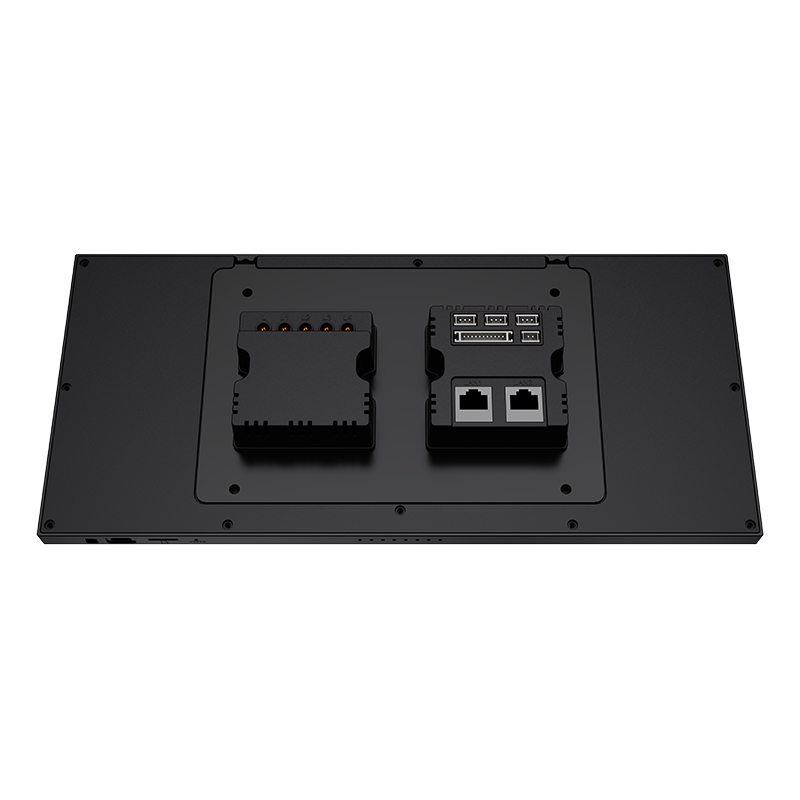

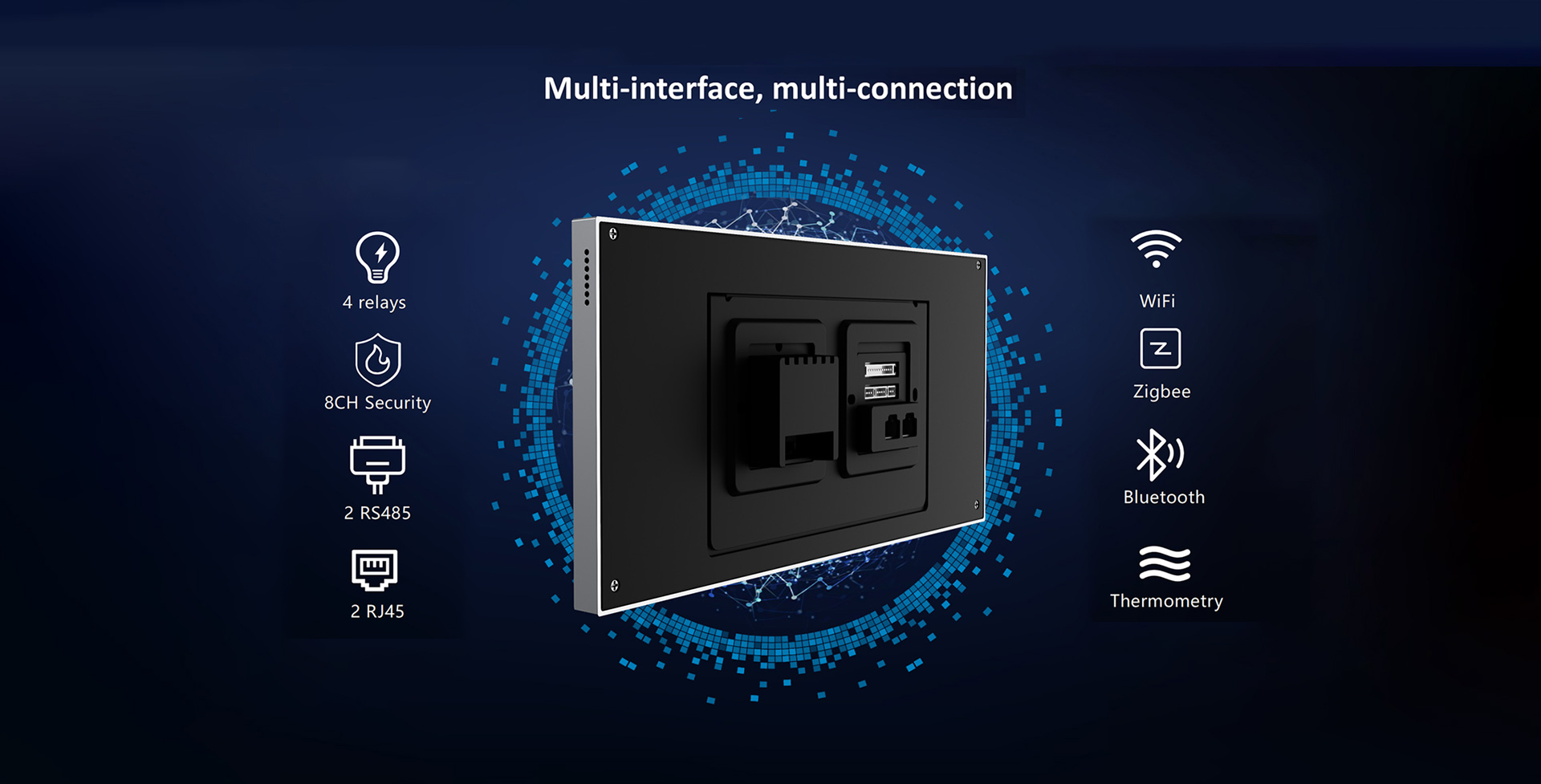

| Port | |
| Ethernet Port | 2 x RJ45, 10/100 Mbps adaptive |
| Relay | 4 |
| RS485 Port | 2 |
| Power Input | 1 (DC12V/1.5A) |
| Alarm Input | 8 CH |
| Temperature Input | 1 |
| TF Card Slot | 1 |
| Type-C | 1 |
| Sensor | |
| Light Sensor | Yes |

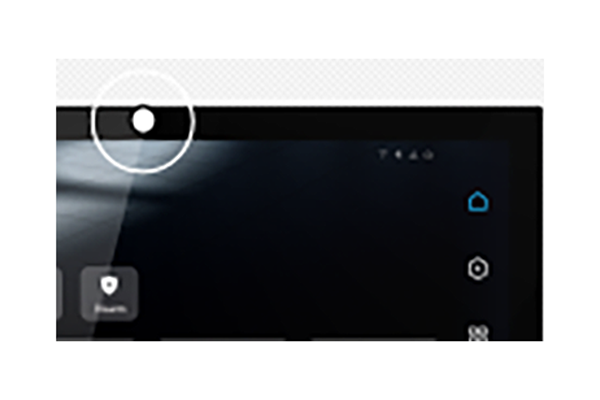

| Proximity Sensor | Yes |
| RH/Temp Sensor | Yes |
